PART TYPE

A Part Type is a classification that defines the role and purpose of a component within the manufacturing or supply chain process. It helps categorize parts based on their function, source, and usage. The six predefined Part Types serve specific roles in engineering, production, and inventory management.

  • PP (Purchase Part) – Components or materials procured from external suppliers.
  • SA (Sub-Assembly) – Intermediate assemblies that are part of a larger product.
  • FRU (Field Replaceable Unit) – Parts designed for easy replacement in the field.
  • TG (Tooling & Gauges) – Specialized tools or measuring instruments used in manufacturing.
  • FG (Finished Good) – The final product ready for sale or distribution.
  • Phantom – A virtual or non-physical grouping used for planning or assembly purposes.
  1. Click on "Kit Management".
  2. Under "Secondary Master", select "Part Type".

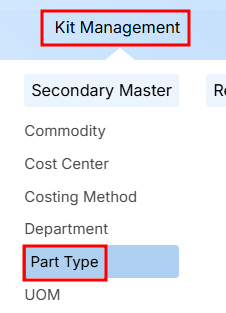

STEPS TO PART TYPE

A new page will open, displaying Part Type information.

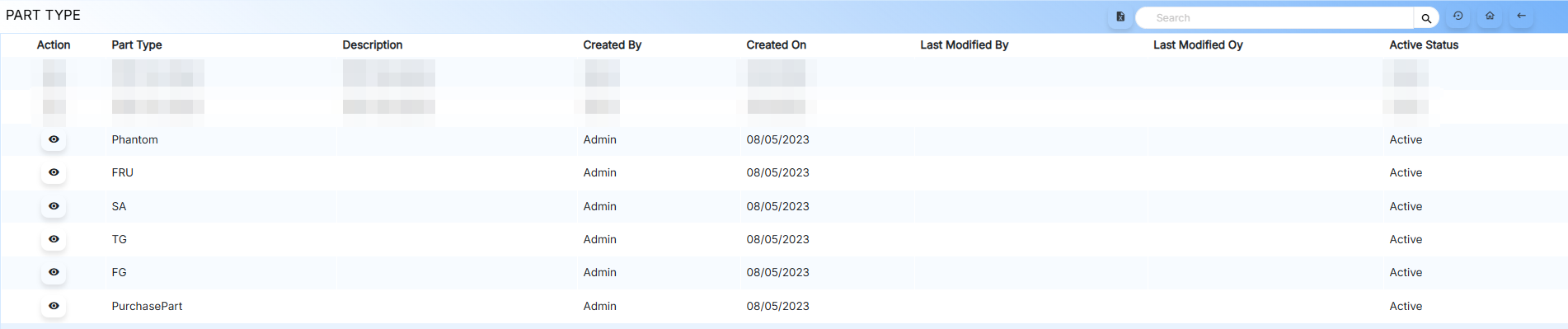

PART TYPE PAGE

Actions**

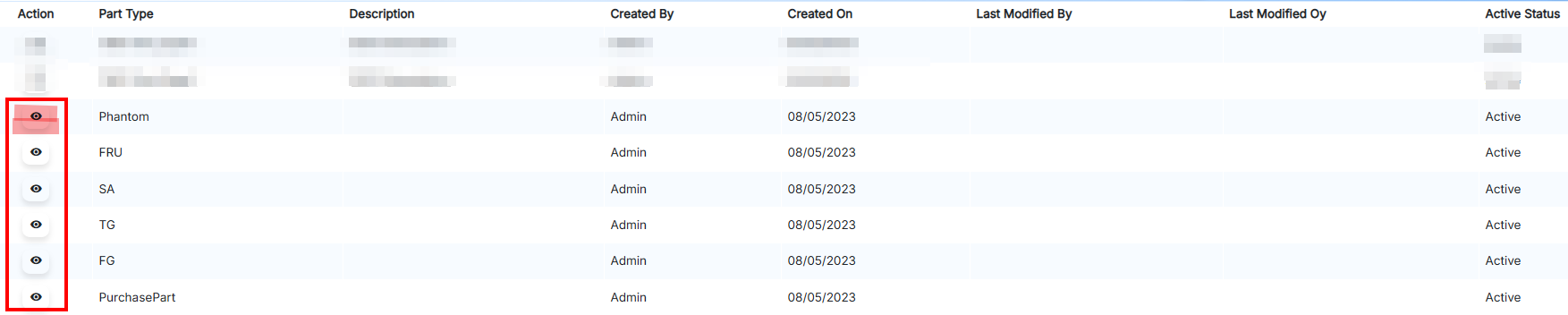

PART TYPE ACTION

  • View : Click the View icon to see detailed information about a specific Part Type.

Note: The six Part Types are predefined and remain consistent throughout the system. New Part Types cannot be created, ensuring standardization across operations.

Icons

PART TYPE ICONS

  • Export to Excel Icon: Clicking this icon exports the table data to an Excel spreadsheet.
  • Search Input: This field allows users to search for Part Type content.
  • Search Icon: Clicking this icon displays a search bar to filter the table data.
  • Refresh: Reloads the current data or resets the view.
  • Home Icon: Clicking this icon redirects the user to the main dashboard or home page of the application.
  • Back Icon: Clicking this icon navigates the user back to the previous page or view.
